A compact subwoofer delivering intelligent bass, feature-rich DSP technology, and an industry-first Sonarworks integration.
Overview
The Sub8 PRO combines advanced DSP technology with outstanding acoustic performance, making it an ideal foundation for compact monitoring systems. This networked subwoofer features a high-excursion 8” woofer, FEA-optimized bass port and powerful Class D amplifier.
An onboard Ethernet connection provides access to ADAM Control and its range of management and calibration tools. Users can manually time-align the subwoofer, apply four bands of parametric EQ and upload Sonarworks calibration profiles. Firmware updates can also be managed through the application, allowing future functionality to be added.
The Sub8 PRO offers Stereo, LFE, and Wide modes for conventional, immersive and full-range applications. Its robust wooden cabinet and protective metal grille ensure durability, with a 5-year warranty available upon product registration.
Specifications
General data
- Cabinet DesignFront Fire and front ported
- Cabinet MaterialVinyl wrapped MDF and painted MDF front panel
- Mounting optionsThreaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, standby)400 W, 2.5 W
- AC Input Voltage100 – 240 V, 50/60 Hz
- Power Rating400 W max
- Operating Conditions-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight15.3 kg (33 lbs 12 oz)
- Dimensions (Height x Width x Depth)385 mm x 300 mm x 365 mm (15 1/8" x 11 6/8" x 14 3/8")
- Warranty5 years (2 years warranty plus 3 years optional with product registration)
- Delivery ContentsSub8 PRO subwoofer, power cable, Quick Start Guide

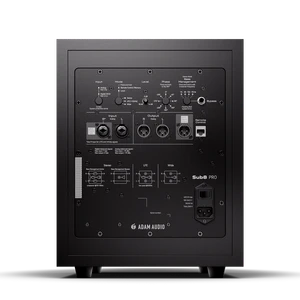

Audio Connectors
- Analog Inputs2 x XLR / TRS combi
- Digital InputXLR AES3
- Analog Input Impedance 25 kOhm
- Digital Input Impedance 110 Ohm
- Max. Input Level+19 dBu
- Analog Outputs2 x XLR
- Digital OutputsXLR AES3
Amplification
- Amplifier TypePWM
- Peak (10% THD, limiter deactivated)325 W
- RMS (1% THD, limiter deactivated)200 W @ 3 Ohm
Control Options [via Network]
- Networking ConnectorRJ45
- Connection TypeEthernet
- Communication ProtocolAES70 / TCP
- Control SoftwareADAM Control (Windows and MacOS available)
- Room Adaption OptionsBackplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation4-bands QEQ
- Third-party Calibration CompatibilityImport from Sonarworks SoundID Reference
Acoustics
- Frequency Response @ -3 dB30 - 228 Hz
- Frequency Response @ -6 dB26 - 300 Hz
- Crossover Frequencies70, 85, 100, 115 Hz (variable via ADAM Control)
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS):105 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak)110 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (RMS)101 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (Peak)104 dB SPL
- Max peak SPL in full space at 1 m with IEC-weighted noise (full range))112 dB SPL
- Max peak SPL in full space at 1 m with IEC-weighted noise (85 Hz bass managed)113 dB SPL
- Dolby DARDT max SPL in full space (full range bass managed)112 dB SPL
Drivers
- Basket Diameter8″
- Voice Coil Diameter1 3/8" (35 mm)
- Cone MaterialPaper, fiber-reinforced
Signal Processing
- AD converter24-bit (via XLR/TRS inputs)
- Internal sample rate96 kHz
- Delay range and resolution0 - 10 ms, 32-bit
- ProtectionIndependent peak and thermo limiters, over current protection, over temperature protection, under voltage protecti
Control Options [via Backplate]
- Input Sensitivity0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
- Level-18 dB to +6 dB
- Input SelectionAnalog, digital
- Phase0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
- Bass Management70, 85, 100, 115 Hz
- Operational ModesRemote Control, Local / Stereo, LFE (<120Hz), Wide
- BypassYes, via footswitch (not included) and TRS connection (latched)
